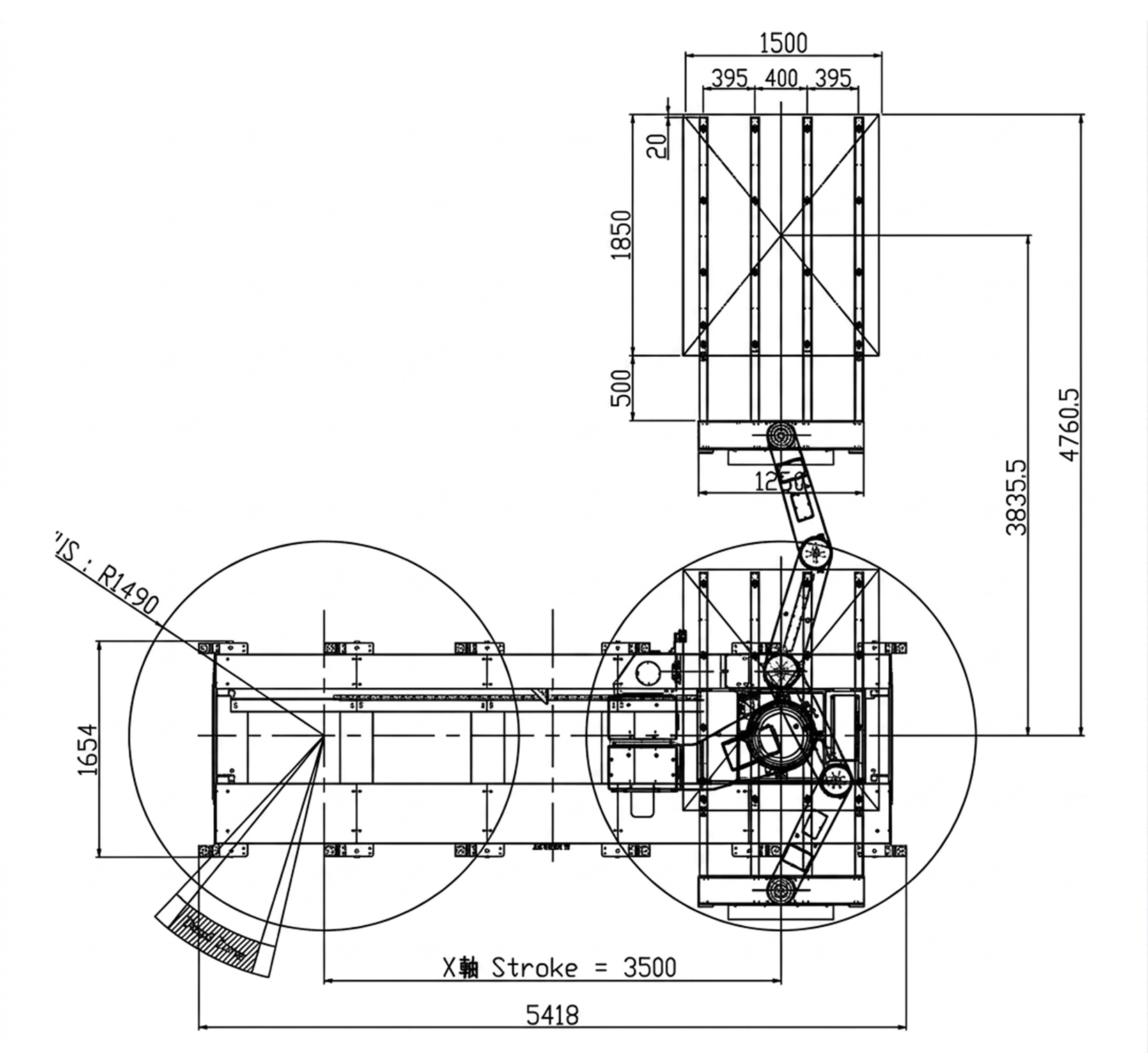

外形图
产品参数
| Items | 6G Glass Robot | ||
|---|---|---|---|
| Applicable Size | 1,500 x 1,850 | ||
| Applicable Grip System | Vacuum | ||
| The Number of Axis | 6 Axis | ||
| Arm Type | Link (Scara) | ||
| STROKE | R/L-Axis | mm | -1,840 ~ +1,840 |
| Th-Axis | °(deg.) | -140° ~ +185° | |
| Z1-Axis | mm | ~ 2,500 | |
| Z2-Axis | mm | ~ 2,200 | |
| X-Axis | mm | 0 ~ 20,000 | |
| MAX. SPEED | R/L-Axis | mm/s | 3,500 |
| Th-Axis | °/sec | 95 (1.65 rad/sec) | |
| Z-Axis | mm/s | 1,100 | |
| X-Axis | mm/s | 2,000 | |
| REPEATABILLTY | mm | ± 0.2 | |
